Plans for a 300mm x 300mm (11.8" x 11.8”) lampshade, including the Fusion 360 file. The Fusion 360 file is not fully parameter driven but does allow you to change the size with a little manipulation.

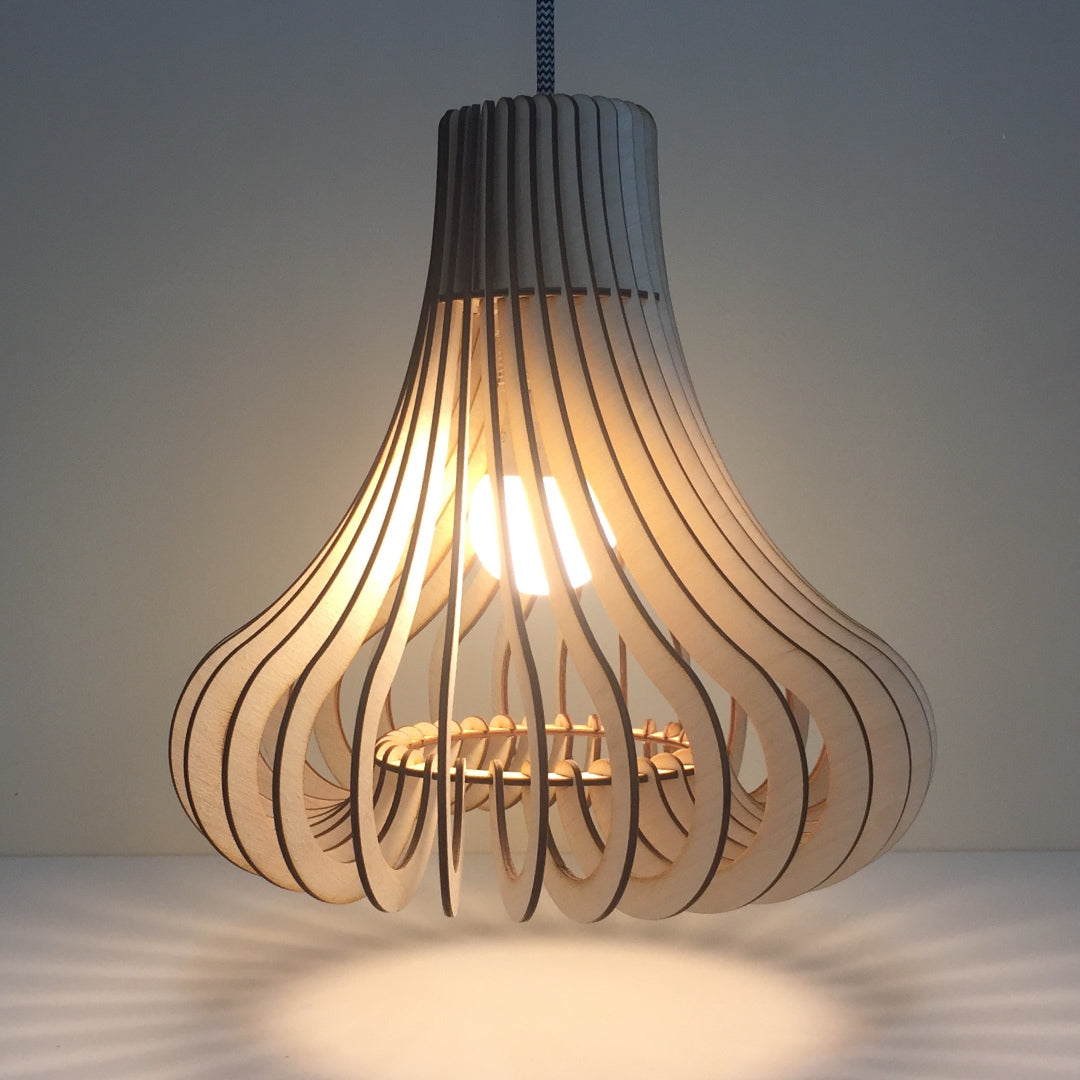

The lampshade in the image is made from 3mm (1/8") Baltic Birch but it could just as easily be made from acrylic.
dxf, ai, & svg files designed to make a lampshade from 3mm (1/8") material.
Dimensions: 300mm high x 300mm diameter (11.8 x 11.8”)
Plus the Fusion 360 file.
If you don't have access to a laser cutter you can buy the lampshade here:
For how to assemble this lampshade please watch this video:
You are free to:
Adapt, remix, transform, and build upon the material
You may not:
Copy and redistribute the material in any medium or format.
Use the material for commercial purposes.
